Mechanical clamping
Slotted modular PITBULL with step
The Pitbull clamp is a revolutionary new fixture clamp :
• Positive down force and high resistance to rip-out,
• extremely low gripping profile = gain maximum tool access to your workpiece,
• simple, sturdy, high quality design and components.

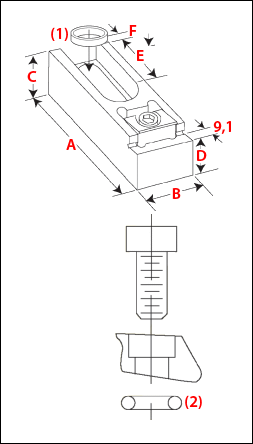

(1) Washer.
(2) O-ring.
Blunt edge
Knife edge
PITBULL D APPUI
Type :
Slotted modular with step
Catalog 219 :

PITBULL with stop (1 washer include)

Mounting
scews
Tightening distance
A
B
C
D
E
F
Force
(N)
Torque N/m
Knife
edge
Blunt
edge
Code
Reference
€ Unit
M12
0,61
103,6
31,7
25,1
18,5
43,2
12,7
16 000
22,5
M56240
8MM56240
134,23
M12
0,61
103,6
31,7
25,1
18,5
43,2
12,7
16 000
22,5
M56245
8MM56245
134,23
M16
1,27
107,0
38,1
40,9
35,0
38,6
10,9
26 000
40,6
M56250
8MM56250
315,52
M16
1,27
107,0
38,1
40,9
35,0
38,6
10,9
26 000
40,6
M56255
8MM56255
355,67

Slot washer

Code
For screw
Reference
€ Unit
M20014
M12
8MM20014
7,11
M20016
M16
8MM20016
7,57
