accueil > MACHINE DEBURRING COUNTERSINKING > Countersinks
Countersinks

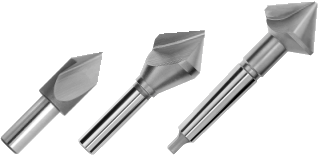

Single flute chamfering cutters - 60° Angle
HSS-E Cobalt = hardness 65 HRC, to machine steels up to 1000 N/mm², cast iron up to 180 HB, copper, brass, bronze, aluminium.
General tolerances
Magafor 422
Angle :
60°
Material :
HSS-E Cobalt
Serie :
right hand cut
Use :
machine use
Type :
Metric / inch
Catalog 219 :
inch
metric
Morse taper shank
D
mm
D
inch
d1
d2
L
Reference
€ Unit
3,17
1/8"
1
3,17
32
84422031700
16,35
4,76
3/16"
1
4,76
35
84422047600
16,63
6
1
6
43
84422060000
15,50
6,35
1/4"
1
6,35
38
84422063500
17,21
7,93
5/16"
1
6,35
42
84422079300
18,36
9,52
3/8"
1
6,35
45
84422095200
20,66
10
1
6
49
84422100000
18,65
12
2
8
54
84422120000
21,51
12,7
1/2"
2
6,35
51
84422127000
24,67
15
2
8
60
84422150000
25,53
15
2
Morse 1
96
84422150100
47,61
15,87
5/8"
2
9,52
57
84422158700
31,55
19,05
3/4"
2
12,7
67
84422190500
48,75
20
2
10
72
84422200000
44,74
20
2
Morse 1
105
84422200100
65,97
22,22
7/8"
3
12,7
70
84422222200
78,02
25
3
12
78
84422250000
72,27
25
3
Morse 1
106
84422250100
96,94
25,4
1"
3
12,7
70
84422254000
82,61
30
3
12
99
84422300000
101,53
30
3
Morse 2
125
84422300200
99,24
31,75
1-1/4"
3
12,7
76
84422317500
120,46
35
5
Morse 2
146
84422350200
141,11
40
8
Morse 3
172
84422400300
152,59
50
10
Morse 3
183
84422500300
237,49
63
10
Morse 3
201
84422630300
382,04
80
10
Morse 4
253
84422800400
633,31

Sets

Designation
Composition
Reference
€ Unit
SET 422
5 chamfering cutters 60° metric
∅ 10 - 15 - 20 - 25 - 30
84422000000
252.41
SET 422/6
6 chamfering cutters 60° inch
∅ 6,35 - 7,93 - 9,52
12,7 - 15,87 - 19,05
84422000006
141.11
