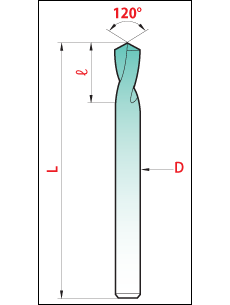

Spotting drills
120° angle
NC spotting drills
long serie
HSS-E COBALT
The preliminary hole obtained with the magafor NC drill corresponds to the angle a the end of the tool used in drilling and prevents it from deviating.
General tolerances
Magafor 199
Angle :
120°
Material :
HSS-E Cobalt
Serie :
right hand cut NC drills, longs
Use :
machine use
Type :
Metric / inch
Catalog 219 :
D
mm
D
inch
L
Reference
€ Unit
1,0
50
6
81199010000
54,50
2,0
60
8
81199020000
45,89
3,0
80
10
81199030000
40,15
4,0
100
12
81199040000
37,28
5,0
120
15
81199050000
40,15
6,0
140
20
81199060000
43,03
6,35
1/4"
140
22
81199063500
45,89
8,0
140
25
81199080000
48,75
9,52
3/8"
170
25
81199095200
65,97
10,0
170
25
81199100000
68,84
12,0
170
30
81199120000
84,91
12,7
1/2"
170
35
81199127000
88,33
15,87
5/8"
200
35
81199158700
123,51
16,0
200
35
81199160000
125,71
19,05
3/4"
200
40
81199190500
158,37
20,0
200
40
81199200000
161,94
25,4
1"
200
45
81199254000
203,66
